Sensors that monitor the whole wheel area—not just the hub, not just the tire—work by distinguishing the vibrations from bad wheel bearings vs. badly mounted rubber vs. some other issue in the hub area. It’s all about preventing more serious problems.
The sensors are tiny in wheel-end monitoring systems, but they are powerful.
The TraX from Gothenburg, Sweden-based SKF looks different but functions very similarly to ConMet’s PreSet Plus SmartHub.
The SKF TraX mounts to any wheel of a heavy-duty vehicle and wirelessly transmits data to an onboard transponder. That data on wheel-bearing vibration and temperature is then relayed to a maintenance location or the professional truck driver’s smartphone app, which alerts fleet technicians and the driver long before a failure in the wheel end or hub or tire or anywhere else occurs. If a thermal event is detected, the truck’s driver is notified immediately to pull over to avoid a failure that could be catastrophic—such as those wheel-offs.
Hendrickson’s trailer wheel-end monitoring product—Watchman powered by the Sensata Vehicle Area Network—pays attention to tires and the brakes of a wheel assembly, explained Steve Hampson, director of electronic controls for the Woodbridge, Illinois-based aftermarket manufacturer.
Hendrickson also is known as a maker and supplier of medium- and heavy-duty mechanical, elastomeric and air suspensions, integrated and nonintegrated axle and brakes systems, auxiliary lift axle systems, parabolic and multi-leaf springs, stabilizers, and bumpers.
As for Watchman, it relays trailer tire-pressure and wheel-end temperature data to a fleet via the product’s trailer telematics system, according to a Hendrickson fact sheet.
Watchman integrates with Tiremaxx, which is Hendrickson’s tire-pressure monitoring system that helps minimize tire wear and maximize fuel economy by managing trailer tire pressures. Tiremaxx has tire-inflating and pressure-relieving, inflating, and equalizing capabilities, according to the fact sheet. The manufacturer worked with the Society of Automotive Engineers on industry standards for the communication of data and fault codes for trailer wheel-end information.
“This common platform allows Hendrickson’s Watchman wheel-end sensor to be used by OEMs to provide crucial trailer data to their customers,” Omar Fernandez, director of marketing at Hendrickson Trailer Commercial Vehicle Systems, said in a statement from the company.
Hampson added additional perspective on thermal events, what causes these events, and what Watchman does for fleet maintenance managers and drivers.
“Brakes are the heat generator,” he told FleetOwner, adding that numerous wheel-end components generate excess temperatures, hubs and bearings among them. “By the very nature of it, the wheel end gets hot by use of brakes. There’s normal operations of brakes, controlled, [but] it’s when it exceeds those thresholds.”
“It’s about wheel-end health,” he added. “That can equate to a lot of things. It’s predominantly focused on the tire, looking at the pressure in the tire system and making sure that it’s level.”
Watchman warns a driver that he or she is navigating the road with deflated tires, Hampson also noted.
“That’s what leads in some cases to what they call ‘thermal events.’ You’re trying to prevent that thermal event from occurring. We also feel the Watchman product [will identify] slow leaks. Small leaks become bigger leaks, which become even bigger leaks.’ The inflation system is keeping up with it, but it’s something you should have looked at soon. Address thermal events before they happen.”
Watchman has temperature sensors, mounted in the hubcap at the wheel end. “We do get indications if that area starts heating up” beyond normal operation, he said. “Another indicator of problems.”

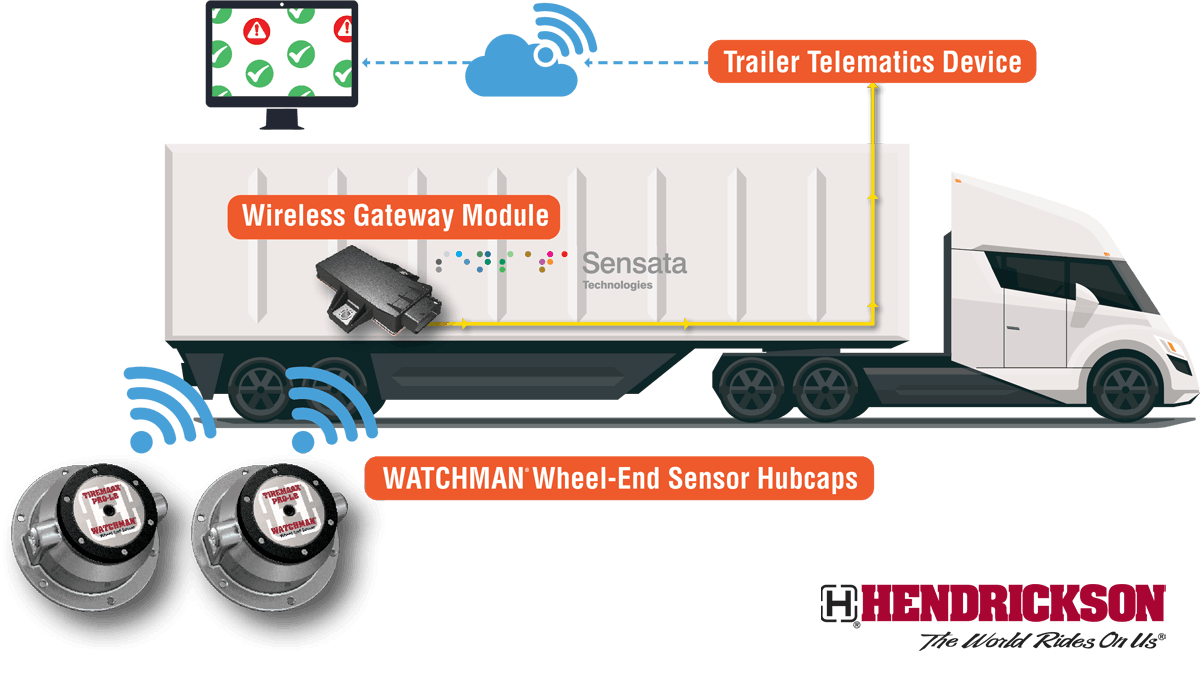

Early warnings of low tire pressure or leakage and/or elevated temperatures can help minimize the cost of repairs and maintenance of crucial wheel-end components. Watchman’s hubcap-mounted, battery-powered wheel-end sensors transmit wireless signals to the gateway module, collecting the data and acting as the trailer’s communications hub. The information will be transmitted from the gateway module to the trailer telematics device for transmission to the fleet’s back office.
Just like SKF TraX and ConMet’s PreSet Plus SmartHub do, Hendrickson is working with telematics providers to integrate data from the Watchman wheel-end sensor into their telematic solutions, to provide timely and actionable data for enhanced fleet efficiency and uptime. Watchman gets its sensors from Sensata Technologies.
The role of other systems
Other manufacturers such as Pressure Systems International (P.S.I.) and Bendix emphasize how their tire- and brake-monitoring systems help prevent thermal events.

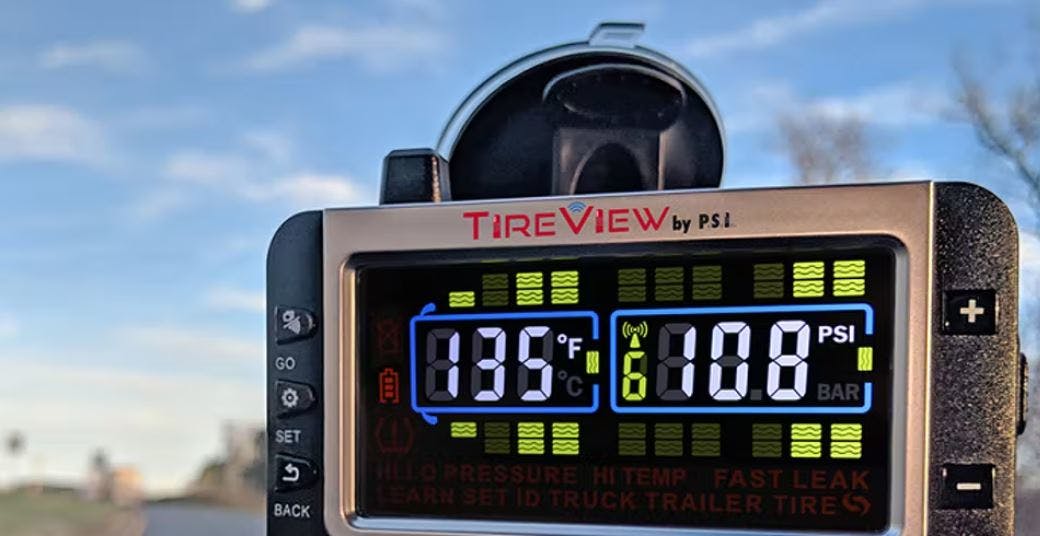

Jim Sharkey, VP of global sales and marketing for P.S.I., spoke with FleetOwner about PSI’s tire-pressure and temperature-monitoring TireView product.
TireView pairs with another P.S.I. product, ATIS with ThermAlert, its tire-inflation system combined with a system that alerts fleet headquarters and drivers to excess wheel-end temperatures. If the temp of the wheel end elevates into a dangerous operating zone, a eutectic screw installed in the press plug melts, causing pressurized air to vent through the hubcap tee vent.
A warning light becomes visible in the driver’s rearview mirror, allowing him or her to pull over to avoid a catastrophic event. Air escaping through the hubcap vent will audibly identify the problem wheel end.
The TireView “gateway” can be mounted inside or outside the cab of a truck, can even be located inside a trailer, and it can port with certain manufacturers’ electronic logging devices.
“Depends on the configuration of vehicles,” Sharkey said. “Right now, everybody wants smart trailers, so they want all the data going to one location. We’d rather integrate with somebody else’s platform. The important stuff is the data. We don’t care how it gets there. We’re gonna help you learn when there’s a problem.”
